Rygmaster system

Single unit system for repair purposes and on-call situations

Universal to all aircraft types. It is used to adjust, check and test the angular deflection of all flight control.

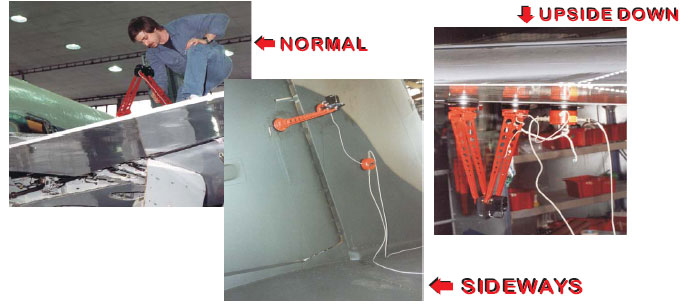

Versatile in mounting position:

Inst Rigmaster

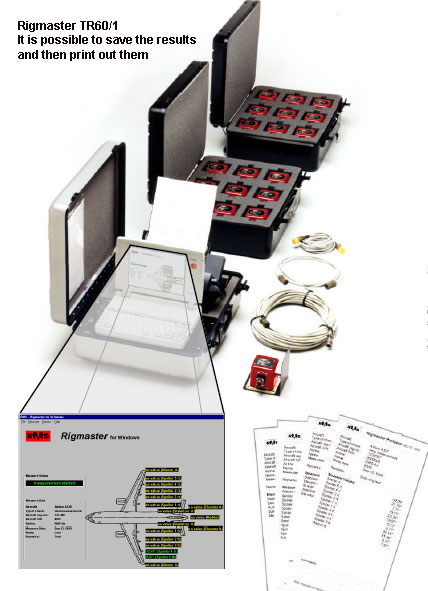

Rigmaster TR 60/1

Rigmaster TR 60/1
Protractor mounting on control surface
  • Multichannel system
  • Aircraft + hanger downtime reduced
  • Engineering and labor costs reduced
  • Less aircraft drag = fuel saving

This equipment is universal to all types of aircraft, - light aircraft through to wide bodied, and is used to adjust, check and test the angular deflection of all flight control surfaces.

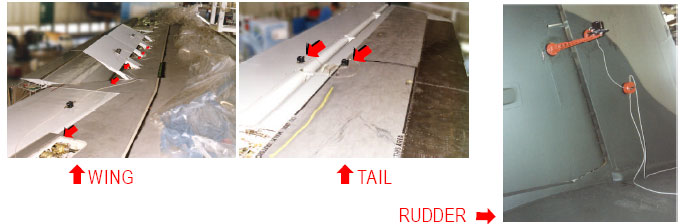

wing, tail, rudder

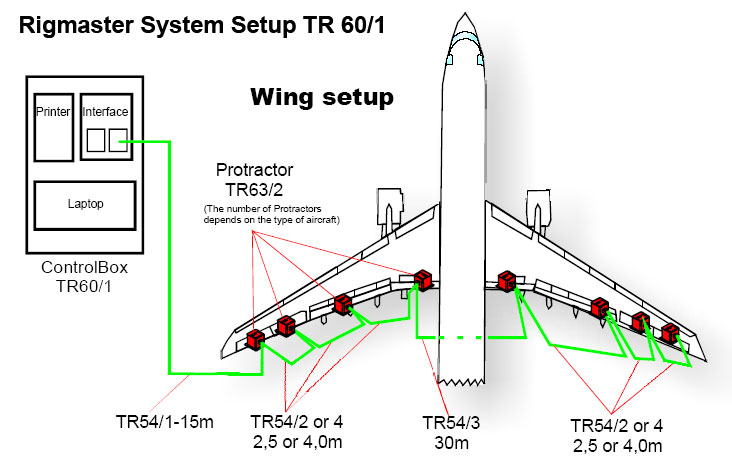

Rigmaster system setup TR60/1

Wing setup

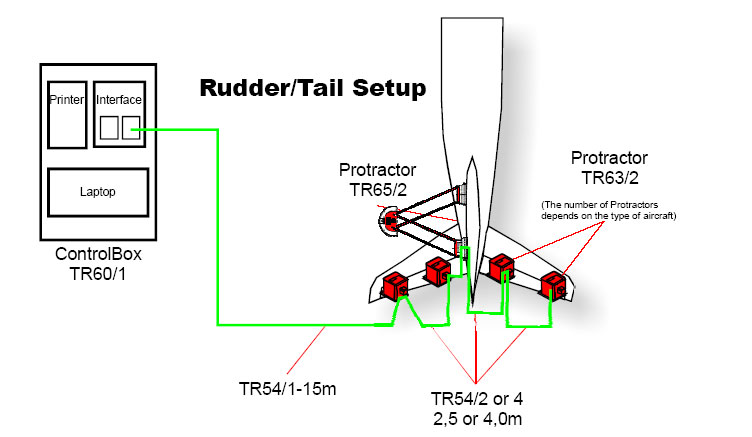

Rudder/Tail Setup

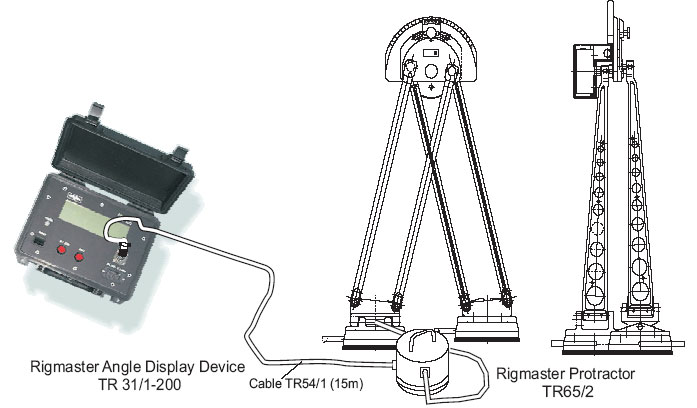

Rigmaster TR31/1

  • One channel system
  • Electronic readout transmitted to a control box
  • Individual measuring of each angular deflection

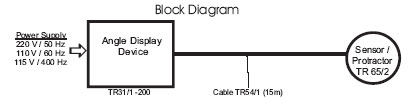

Scheme

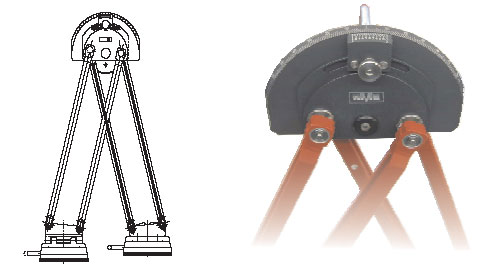

Rigmaster TR 31-101

  • Mechanical Protractor
  • Individual measuring of each angular deflection
  • Visual readout on mechanical scale

      TR 31-101
